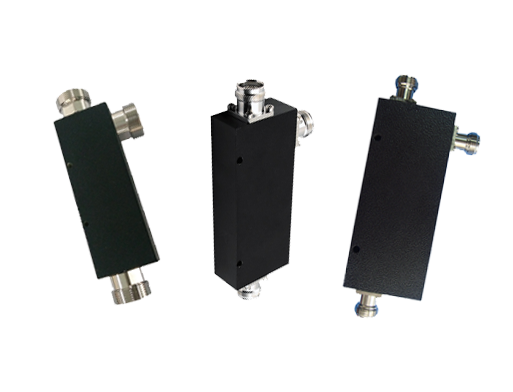

耦合器 ———— |
|
|
全頻段，可覆蓋4G/5G系統 |低互調|多種連接器形式N/DIN/4310型|IP65/IP67防水標準 |
|
|
|
定向耦合器是微波系統中應用廣泛的一種微波器件，主要應用于直放站或基站上進行功率分路，也可以使用在室內分布系統中進行功率分路。
|
| 產品型號 | 工作頻段 | 耦合度 | 駐波比 | 三階互調 | 平均功率 | 接頭形式 | 庫存 |
| (GHz) | (IN/OUT) | dBc@2x43dBm | (W) | ||||
| HT.ACP-0827-XX1101 | 0.8~2.7 | 5/7/10/15/20/30/40 | 1.25 | -150 | 200 |
N-F |
YES |
| HT.ACP-0727-XX1101 | 0.7~2.7 | 5/7/10/15/20/30/40 | 1.25 | -150 | 200 | N-F | YES |
| HT.ACP-0738-XX1101 | 0.7~3.8 | 5/7/10/15/20/30/40 | 1.25 | -150 | 200 | N-F | YES |
| HT.ACP-0827-XX3301 | 0.8~2.7 | 5/7/10/15/20/30/40 | 1.25 | -150 | 200 | DIN-F | YES |
| HT.ACP-0727-XX3301 | 0.7~2.7 | 5/7/10/15/20/30/40 | 1.25 | -150 | 200 | DIN-F | YES |
| HT.ACP-0738-XX3301 | 0.7~3.8 | 5/7/10/15/20/30/40 | 1.25 | -150 | 200 | DIN-F | YES |
| HT.ACP-0827-XX4301 | 0.8~2.7 | 5/7/10/15/20/30/40 | 1.25 | -150 | 200 | 4.3-10-F | YES |
| HT.ACP-0727-XX4301 | 0.7~2.7 | 5/7/10/15/20/30/40 | 1.25 | -150 | 200 | 4.3-10-F | YES |
| HT.ACP-0738-XX3301 | 0.7~3.8 | 5/7/10/15/20/30/40 | 1.25 | -150 | 200 | 4.3-10-F | YES |
| HT.ACP-0827-XX1101 | 0.8~2.7 | 5/7/10/15/20/30/40 | 1.25 | -155 | 300 | N-F | YES |
| HT.ACP-0727-XX1101 | 0.7~2.7 | 5/7/10/15/20/30/40 | 1.25 | -155 | 300 | N-F | YES |
| HT.ACP-0738-XX1101 | 0.7~3.8 | 5/7/10/15/20/30/40 | 1.25 | -155 | 300 | N-F | YES |
| HT.ACP-0827-XX3301 | 0.8~2.7 | 5/7/10/15/20/30/40 | 1.25 | -155 | 300 | DIN-F | YES |
| HT.ACP-0727-XX3301 | 0.7~2.7 | 5/7/10/15/20/30/40 | 1.25 | -155 | 300 | DIN-F | YES |
| HT.ACP-0738-XX3301 | 0.7~3.8 | 5/7/10/15/20/30/40 | 1.25 | -155 | 300 | DIN-F | YES |
| HT.ACP-0827-XX4301 | 0.8~2.7 | 5/7/10/15/20/30/40 | 1.25 | -155 | 300 | 4.3-10-F | YES |
| HT.ACP-0727-XX4301 | 0.7~2.7 | 5/7/10/15/20/30/40 | 1.25 | -155 | 300 | 4.3-10-F | YES |
| HT.ACP-0738-XX3301 | 0.7~3.8 | 5/7/10/15/20/30/40 | 1.25 | -155 | 300 | 4.3-10-F | YES |
|
HTCP10-501203 |
0.5~20 |
10 |
1.4 |
/ |
30 |
SMA-F |
YES |
|
HTCP10-20402 |
2~4 |
10 |
1.3 |
/ |
60 |
SMA-F |
YES |
