衰減器
———— |
|
|
全頻段，可覆蓋4G/5G系統 |低互調|多種連接器形式N/DIN/4310型|IP65/IP67防水標準 |
|
|
|

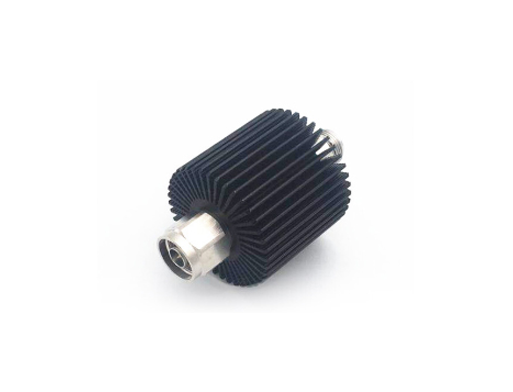

同軸固定衰減器可定量吸收傳輸線中的能量，提供信號調節和電平控制，匹配信號源與負載阻抗；并可配以小功率計、綜合測試儀或頻譜分析儀精確測量各類射頻微波發射機的功率或頻譜
|
| 產品型號 | 工作頻段 | 衰減度 | 駐波比 | 三階互調 | 功率容量 | 接頭形式 | 庫存 |
| (GHz) | (dB) | (IN/OUT) | dBc@2x43dBm | (W) | |||
| HT.ATT-03XX-XX1101 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 2 | N-M/N-F | YES |
| HT.ATT-03XX-XX1101 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 5 | N-M/N-F | YES |
| HT.ATT-03XX-XX1101 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 10 | N-M/N-F | YES |
| HT.ATT-03XX-XX1101 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 25 | N-M/N-F | YES |
| HT.ATT-03XX-XX1101 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 50 | N-M/N-F | YES |
| HT.ATT-03XX-XX1101 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 100 | N-M/N-F | YES |
| HT.ATT-03XX-XX1101 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 200 | N-M/N-F | YES |
| HT.ATT-03XX-XX1101 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 300 | N-M/N-F | YES |
| HT.ATT-03XX-XX1101 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 500 | N-M/N-F | YES |
| HT.ATT-03XX-XX3301 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 2 | DIN-M/F | YES |
| HT.ATT-03XX-XX3301 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 5 | DIN-M/F | YES |
| HT.ATT-03XX-XX3301 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 10 | DIN-M/F | YES |
| HT.ATT-03XX-XX3301 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 25 | DIN-M/F | YES |
| HT.ATT-03XX-XX3301 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 50 | DIN-M/F | YES |
| HT.ATT-03XX-XX3301 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 100 | DIN-M/F | YES |
| HT.ATT-03XX-XX3301 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 200 | DIN-M/F | YES |
| HT.ATT-03XX-XX3301 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 300 | DIN-M/F | YES |
| HT.ATT-03XX-XX3301 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 500 | DIN-M/F | YES |
| HT.ATT-03XX-XX4301 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 2 | 4.3-10-M/F | YES |
| HT.ATT-03XX-XX4301 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 5 | 4.3-10-M/F | YES |
| HT.ATT-03XX-XX4301 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 10 | 4.3-10-M/F | YES |
| HT.ATT-03XX-XX4301 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 25 | 4.3-10-M/F | YES |
| HT.ATT-03XX-XX4301 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 50 | 4.3-10-M/F | YES |
| HT.ATT-03XX-XX4301 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 100 | 4.3-10-M/F | YES |
| HT.ATT-03XX-XX4301 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 200 | 4.3-10-M/F | YES |
| HT.ATT-03XX-XX4301 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 300 | 4.3-10-M/F | YES |
| HT.ATT-03XX-XX4301 | 0~3 | 3/6/10/15/20/30/40 | 1.25 | -105 | 500 | 4.3-10-M/F | YES |
